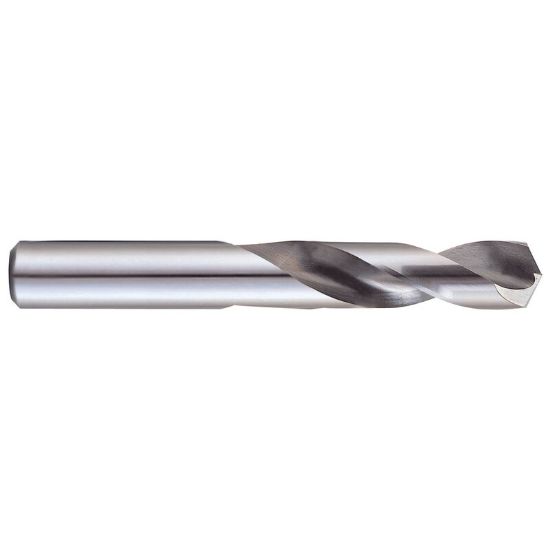

Picture of YG-1 D2148144 #44 HSS(M42) Screw Machine Drill

YG-1 D2148144 #44 HSS(M42) Screw Machine Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1D2148144
Delivery date: 3-5 days
$1.00

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Application Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Size 0.0860 2.18MM
Overall Len 1.7500 44.45MM
Cutter Dia 0.0860 2.18MM - #44
Cut Dia Min 0.0860 2.18MM - #44
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Cobalt
Flute Length 0.7500 19.05MM
Drill Length Type Screw
Included Angle 135°
Shank/Pilot Dia 0.0860 2.18MM - #44
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Contractor Yes
