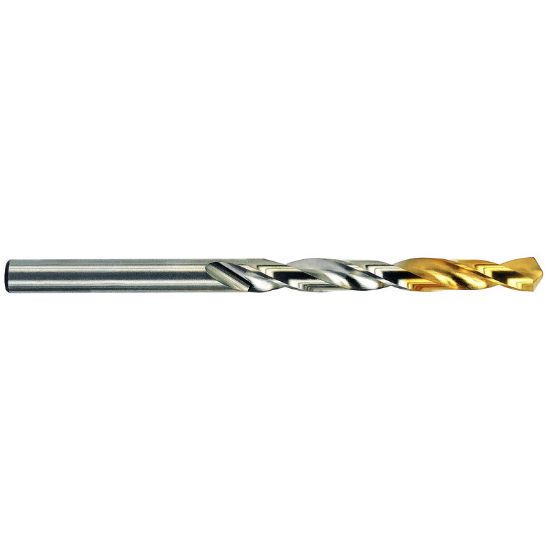

YG-1 D1GP182023 23/64 HSS(M2) Jobbers Length Straight Shank Gold-P Drill S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1D1GP182023
Delivery date: 3-5 days
$4.15

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA No
Shipping State Illinois
Package Size 5
Coating TiN
Dimensional Specifications
Tool Material High Speed Steel
Machine Side Connection Size 0.3594 9.13MM
Overall Len 4.8750 123.83MM
Cut Dia Min 0.3594 9.13MM - 23/64
Flute Length 3.5000 88.90MM
Drill Length Type Jobber
Cut Rating <25HRC Steel, Grey Iron, Graphite
Included Angle 135°
Cutter Dia 0.3594 9.13MM - 23/64
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3594 9.13MM - 23/64
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
