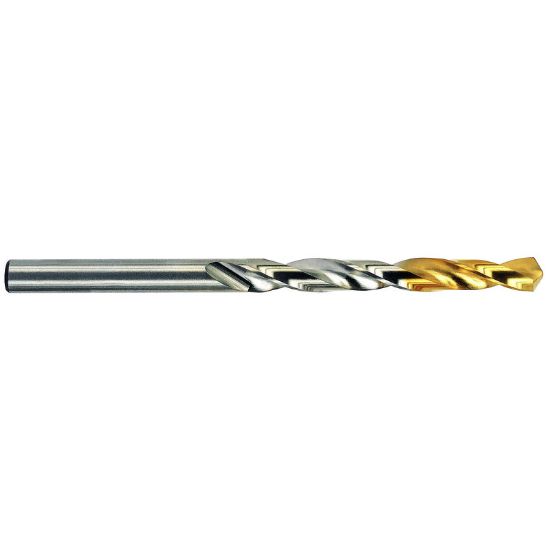

YG-1 D1GP182009 9/64 HSS(M2) Jobbers Length Straight Shank Gold-P Drill S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1D1GP182009
Delivery date: 3-5 days
$1.09

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Coating TiN
Application Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.1406 3.57MM - 9/64 - #28
Flutes/Inserts 2
Cutter Dia 0.1406 3.57MM - 9/64 - #28
Flute Length 1.7500 44.45MM
Drill Length Type Jobber
Cut Rating <25HRC Steel, Grey Iron, Graphite
Machine Side Connection Size 0.1406 3.57MM
Tool Material High Speed Steel
Included Angle 135°
Machine Side Connection Type Cylindrical
Overall Len 2.8750 73.03MM
Cut Dia Min 0.1406 3.57MM - 9/64 - #28
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Automotive Yes
Contractor Yes
