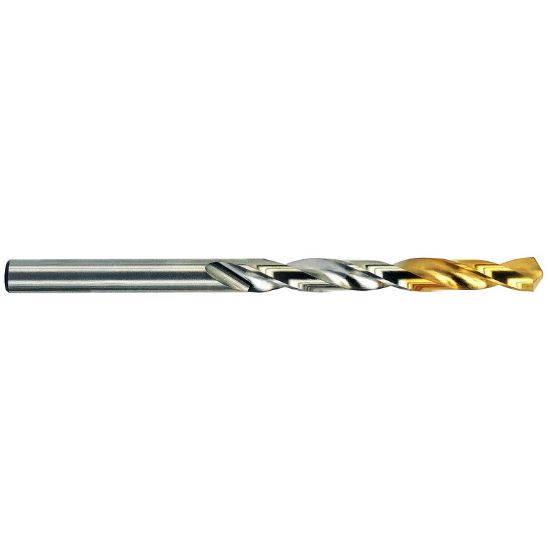

YG-1 D1GP139103 C HSS(M2) Jobbers Length Straight Shank Gold-P Drill S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1D1GP139103
Delivery date: 3-5 days
$2.49

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA No
Shipping State Illinois
Package Size 10
Coating TiN
Dimensional Specifications
Tool Material High Speed Steel
Shank/Pilot Dia 0.2420 6.15MM - C
Flute Length 2.7500 69.85MM
Included Angle 135°
Flutes/Inserts 2
Cut Dia Max 0.5000 12.70MM - 1/2
Drill Length Type Jobber
Cutter Dia 0.2420 6.15MM - C
Cut Dia Min 0.2420 6.15MM - C
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2420 6.15MM
Overall Len 4.0000 101.60MM
Cut Rating <25HRC Steel, Grey Iron, Graphite
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Automotive Yes
Contractor Yes
Job Shop Yes
