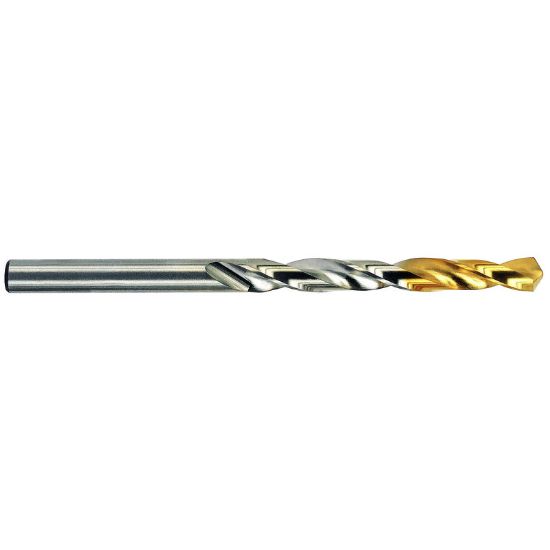

YG-1 D1GP138237 #20 HSS(M2) Jobbers Length Straight Shank Gold-P Drill S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1D1GP138237
Delivery date: 3-5 days
$1.20

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 10
Application Drilling
Shipping State Illinois
Coating TiN
Dimensional Specifications
Cut Rating <25HRC Steel, Grey Iron, Graphite
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1610 4.09MM - #20
Cut Dia Min 0.1610 4.09MM - #20
Tool Material High Speed Steel
Flutes/Inserts 2
Flute Length 2.1250 53.98MM
Included Angle 135°
Machine Side Connection Size 0.1610 4.09MM
Overall Len 3.2500 82.55MM
Drill Length Type Jobber
Cutter Dia 0.1610 4.09MM - #20
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
