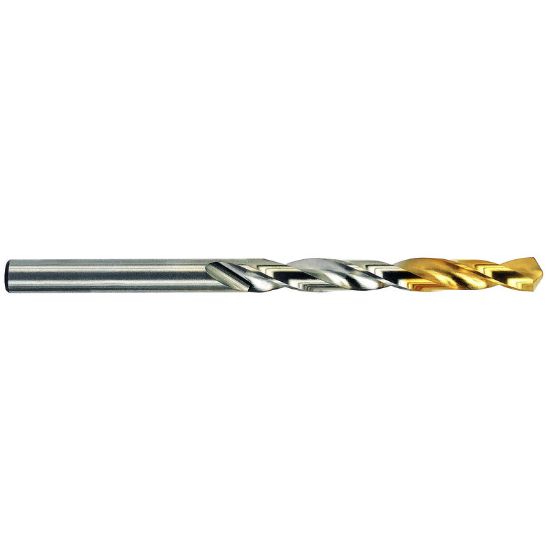

YG-1 D1GP138233 #24 HSS(M2) Jobbers Length Straight Shank Gold-P Drill S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1D1GP138233
Delivery date: 3-5 days
$1.12

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Shipping State Illinois
Coating TiN
Made In USA No
Package Size 10
Dimensional Specifications
Included Angle 135°
Overall Len 3.1250 79.38MM
Flute Length 2.0000 50.80MM
Drill Length Type Jobber
Tool Material High Speed Steel
Flutes/Inserts 2
Cut Rating <25HRC Steel, Grey Iron, Graphite
Machine Side Connection Size 0.1520 3.86MM
Shank/Pilot Dia 0.1520 3.86MM - #24
Cutter Dia 0.1520 3.86MM - #24
Cut Dia Min 0.1520 3.86MM - #24
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Contractor Yes
Job Shop Yes
