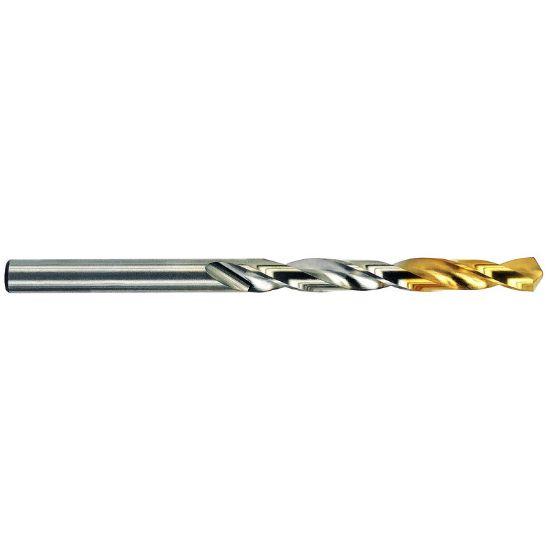

YG-1 D1GP138229 #28 HSS(M2) Jobbers Length Straight Shank Gold-P Drill S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1D1GP138229
Delivery date: 3-5 days
$1.00

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Package Size 10
Application Drilling
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Cylindrical
Overall Len 2.8750 73.03MM
Cutter Dia 0.1406 3.57MM - 9/64 - #28
Cut Dia Min 0.1406 3.57MM - 9/64 - #28
Flute Length 1.7500 44.45MM
Drill Length Type Jobber
Cut Rating <25HRC Steel, Grey Iron, Graphite
Machine Side Connection Size 0.1406 3.57MM
Included Angle 135°
Tool Material High Speed Steel
Shank/Pilot Dia 0.1406 3.57MM - 9/64 - #28
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Automotive Yes
Contractor Yes
