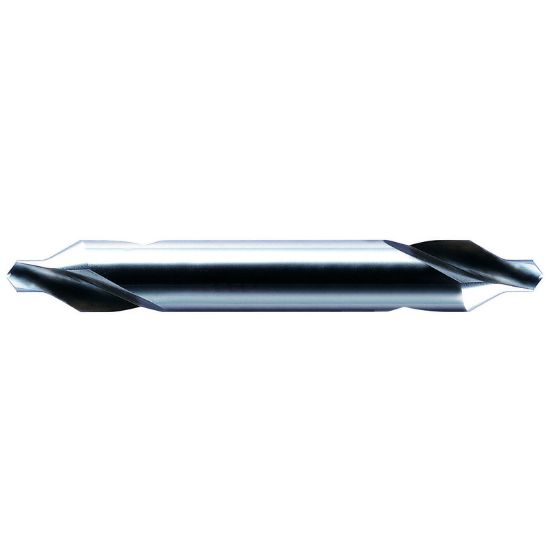

YG-1 D1C90143 7/64 HSS(M2) 60 Degree Regular Length Center Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1D1C90143
Delivery date: 3-5 days
$3.44

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA No
Shipping State Illinois
Package Size 10
Dimensional Specifications
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Included Angle 60°
Tool Material High Speed Steel
Overall Len 2.0000 50.80MM
Cutter Dia 0.1094 2.78MM - 7/64
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Cut Dia Min 0.1094 2.78MM - 7/64
Cut Dia Max 0.2500 6.35MM
Drill Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
Multi Spindle Yes
