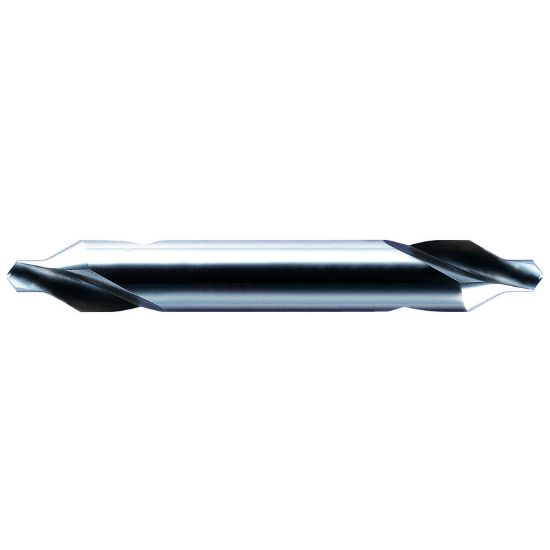

YG-1 D1C90101 3/16 HSS(M2) 60 Degree Point Long Length Center Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1D1C90101
Delivery date: 3-5 days
$15.05

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Shipping State Illinois
Package Size 1
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.1875 4.76MM - 3/16
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Tool Material High Speed Steel
Flutes/Inserts 2
Included Angle 60°
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.4375 11.11MM
Drill Length Type Standard
Cut Dia Min 0.1875 4.76MM - 3/16
Overall Len 6.0000 152.40MM
Cut Dia Max 0.4375 11.11MM - 7/16
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Multi Spindle Yes
Medical Yes
Aerospace Yes
Mold Yes
