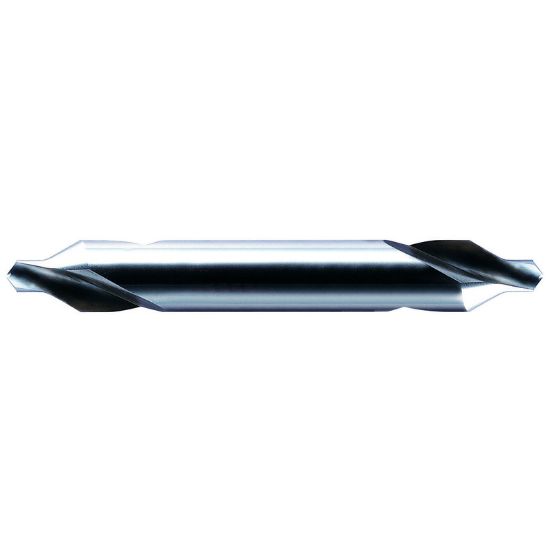

YG-1 D1C90097 1/8 HSS(M2) 60 Degree Point Long Length Center Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1D1C90097
Delivery date: 3-5 days
$7.21

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Drilling
Shipping State Illinois
Package Size 1
Dimensional Specifications
Cut Dia Max 0.3125 7.94MM - 5/16
Tool Material High Speed Steel
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Drill Length Type Standard
Machine Side Connection Size 0.3125 7.94MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 0.1250 3.18MM - 1/8
Cutter Dia 0.1250 3.18MM - 1/8
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 5.0000 127.00MM
Included Angle 60°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Automotive Yes
Agricultural YES
Energy Yes
Medical Yes
