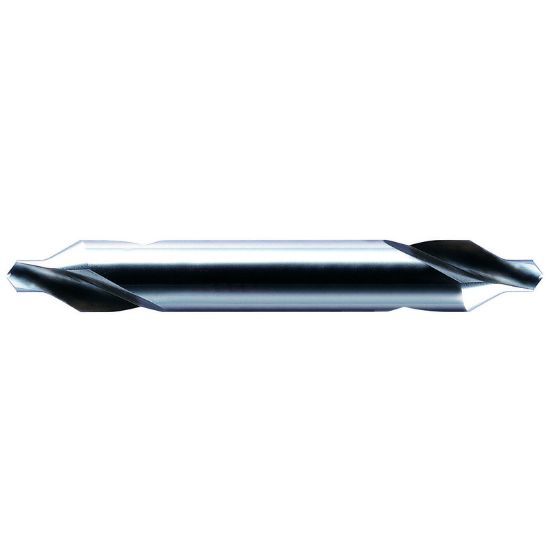

YG-1 D1C90079 3/64 HSS(M2) 60 Degree Regular Length Center Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1D1C90079
Delivery date: 3-5 days
$2.59

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Made In USA No
Package Size 10
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 0.1250 3.18MM
Overall Len 1.5000 38.10MM
Machine Side Connection Type Cylindrical
Drill Length Type Standard
Cutter Dia 0.0469 1.19MM - 3/64
Tool Material High Speed Steel
Machine Side Connection Size 0.1250 3.18MM
Flutes/Inserts 2
Included Angle 60°
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Cut Dia Min 0.0469 1.19MM - 3/64
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Multi Spindle Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
