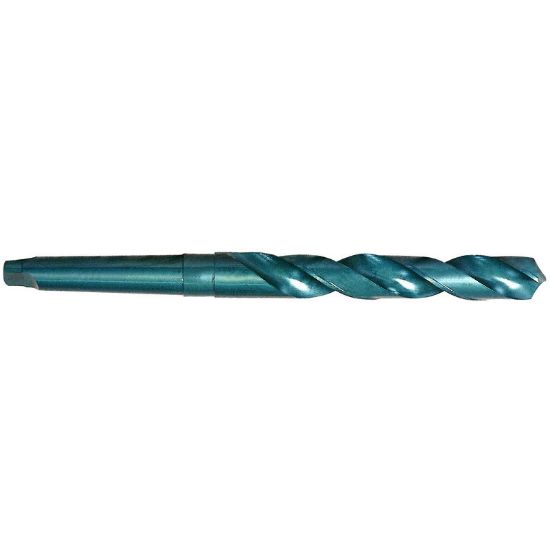

YG-1 D1211200 2 HSS(M2) Morse Taper Shank Twist Drill S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1D1211200
Delivery date: 3-5 days
$271.61

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Black oxide is a conversion coating used on iron, zinc, steel, stainless steel, and copper. It results in a black, smooth surface finish

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drilling
Coating Oxide
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 2
Cutter Dia 2.0000 50.80MM
Included Angle 118°
Drill Length Type Standard
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 2.0000 50.80MM
Flute Length 10.3750 263.53MM
Machine Side Connection Type Morse
Machine Side Connection Size 5
Overall Len 17.3750 441.33MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
