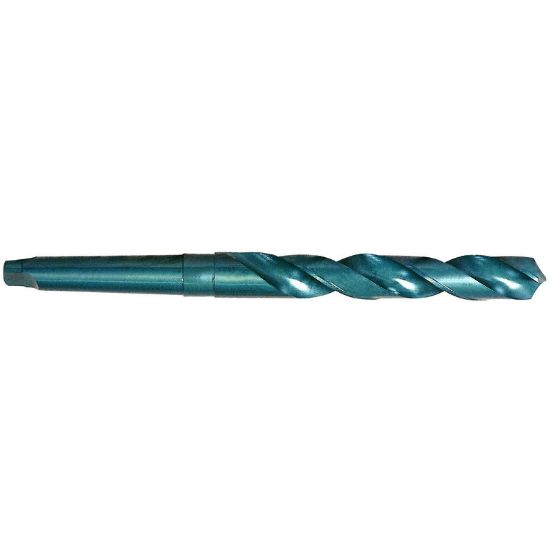

YG-1 D1211043 43/64 HSS(M2) Morse Taper Shank Twist Drill S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1D1211043
Delivery date: 3-5 days
$27.44

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Black oxide is a conversion coating used on iron, zinc, steel, stainless steel, and copper. It results in a black, smooth surface finish

Products specifications
Attribute name Attribute value
General Product Information
Coating Oxide
Shipping State Illinois
Package Size 1
Application Drilling
Made In USA No
Dimensional Specifications
Tool Material Steel
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 0.6719 17.07MM - 43/64
Machine Side Connection Size 2
Included Angle 118°
Flute Length 5.3750 136.53MM
Drill Length Type Standard
Overall Len 9.2500 234.95MM
Cutter Dia 0.6719 17.06MM - 43/64
Machine Side Connection Type Morse
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
