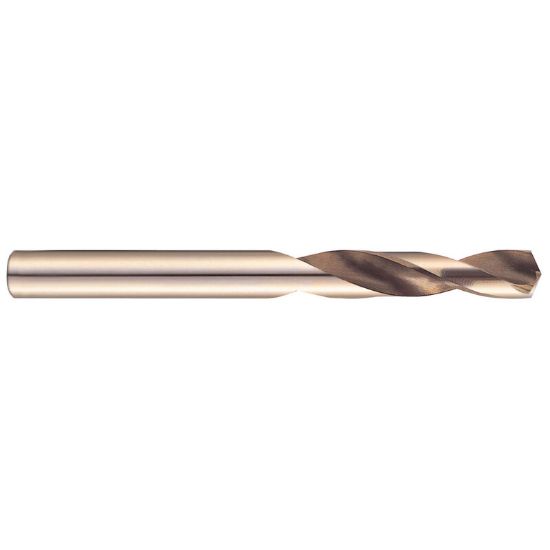

YG-1 D1118003 3/64 HSS(M2) Screw Machine Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG1D1118003
Delivery date: 3-5 days
$0.75

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling
Shipping State Illinois
Made In USA No
Package Size 10
Dimensional Specifications
Cutter Dia 0.0469 1.19MM - 3/64
Overall Len 1.3750 34.93MM
Included Angle 135°
Machine Side Connection Type Cylindrical
Flute Length 0.5000 12.70MM
Cut Dia Min 0.0469 1.19MM - 3/64
Machine Side Connection Size 0.0469 1.19MM
Tool Material High Speed Steel
Flutes/Inserts 2
Drill Length Type Screw
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.0469 1.19MM - 3/64
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Contractor Yes
