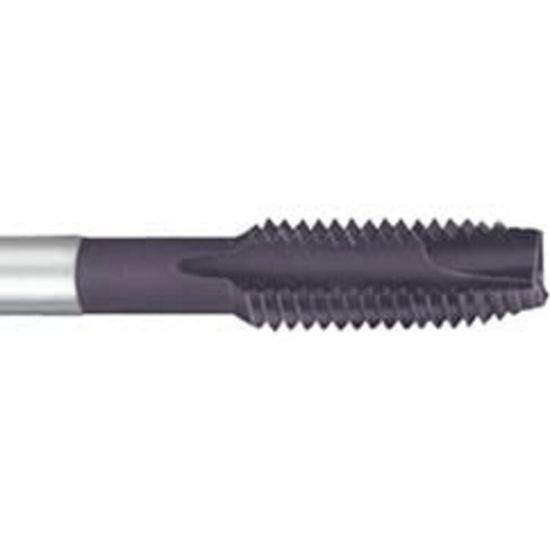

YG-1 C9583 1/2-20.00TPI Cut Spiral Point Plug 4P-5P P-HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-C9583
Delivery date: 3-5 days
$50.69

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Through Hole Tapping, Cut Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tap Style Cut Spiral Point
Thread Size 1/2"
Tool Material Steel
Tap Chamfer 4P-5P
Cut Rating High Temp, Inconel, Titanium
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3750 85.73MM
Tap Type Plug
Machine Side Connection Type Tap Collet
Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Square 0.2750
Length Type Standard
Thread Pitch 20.00TPI
Thread Limit H3/GH3
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat P-HSS
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
