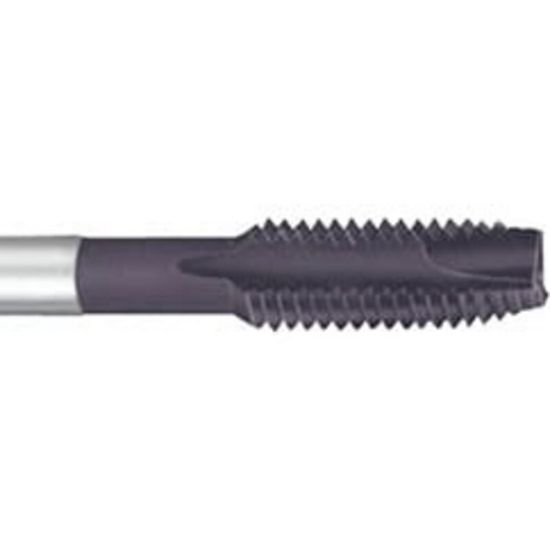

YG-1 C9543 7/16-20.00TPI Cut Spiral Point Plug 4P-5P P-HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-C9543
Delivery date: 3-5 days
$46.07

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating High Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Pitch 20.00TPI
Thread Limit H3/GH3
Length Type Standard
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Style Cut Spiral Point
Thread Size 7/16"
Overall Len 3.1560 80.16MM
Tap Type Plug
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Tool Material Steel
Tap Chamfer 4P-5P
Cut Rating High Temp, Inconel, Titanium
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat P-HSS
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
