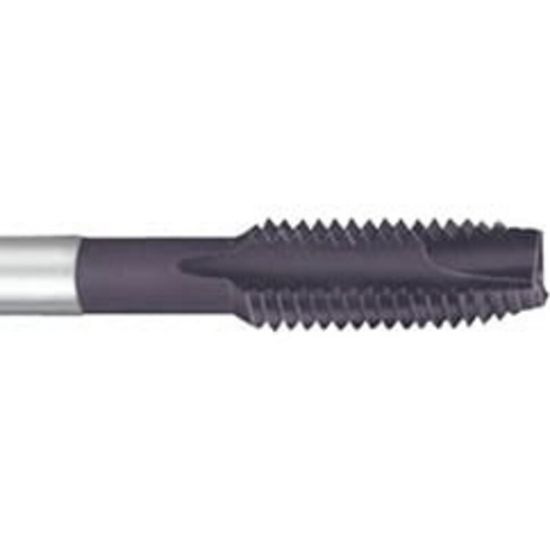

YG-1 C9503 3/8-24.00TPI Cut Spiral Point Plug 4P-5P P-HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-C9503
Delivery date: 3-5 days
$32.83

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Square 0.2860
Flutes/Inserts 3
Tap Style Cut Spiral Point
Thread Size 3/8"
Thread Limit H3/GH3
Shank/Pilot Dia 0.3810 9.68MM
Tool Material Steel
Tap Chamfer 4P-5P
Overall Len 2.9370 74.60MM
Length Type Standard
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Cutting & Machining Properties
Cutting Edge Mat P-HSS
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
