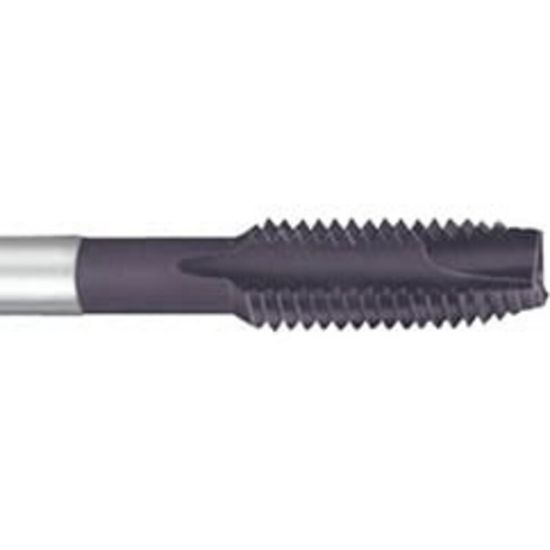

YG-1 C9283 No.8-32.00TPI Cut Spiral Point Plug 4P-5P P-HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-C9283
Delivery date: 3-5 days
$23.20

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Thread Limit H3/GH3
Shank/Pilot Dia 0.1680 4.27MM
Tap Square 0.1310
Length Type Standard
Cut Rating High Temp, Inconel, Titanium
Tap Type Plug
Thread Type NC/UNC
Tool Material Steel
Tap Chamfer 4P-5P
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Overall Len 2.1250 53.98MM
Flutes/Inserts 3
Thread Size No.8
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat P-HSS
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
