  • YG-1 C0323 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

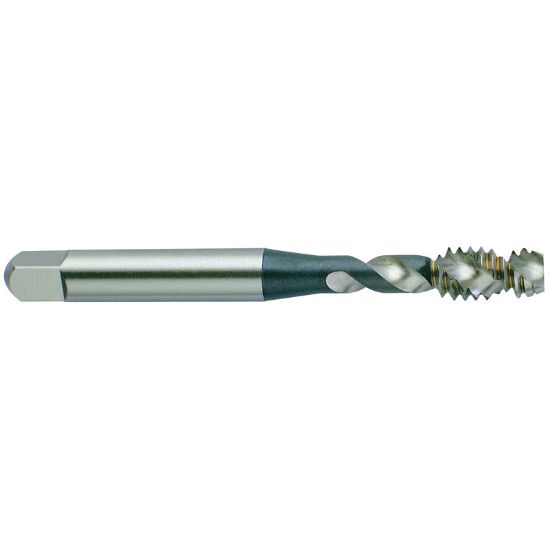

Picture of YG-1 C0323 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

YG-1 C0323 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-C0323
Delivery date: 3-5 days
$13.28

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Tool Material Steel
Length Type Standard
Thread Pitch 24.00TPI
Overall Len 2.3750 60.33MM
Thread Size No.10
Cut Rating Aluminum, Brass, Graphite, Plastic
Shank/Pilot Dia 0.1940 4.93MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Square 0.1520
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 2
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
