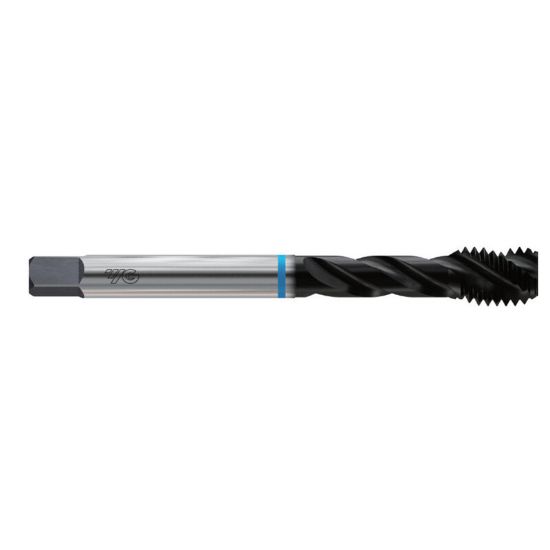

YG-1 BO657 M18-2.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BO657
Delivery date: 3-5 days
$125.16

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Shipping State Illinois
Coating Hardslick
Performance Rating High Performance
Dimensional Specifications
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size M18
Thread Pitch 2.50MM
Drill Range 0.6063 15.40MM - 0.6319 16.05MM
Tool Material Steel
Overall Len 4.9210 124.99MM
Length Type Standard
Thread Type Metric
Thread Limit D7
Tap Square 0.3600
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
Mold Yes
