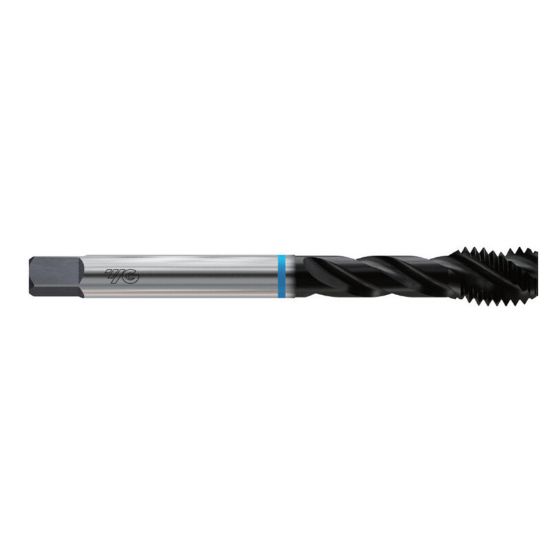

YG-1 BK806 1-12.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BK806
Delivery date: 3-5 days
$203.67

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Hardslick
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Pitch 12.00TPI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size 1"
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Length Type Standard
Shank/Pilot Dia 0.8000 20.32MM
Thread Limit H6/GH6
Tool Material Steel
Tap Square 0.6000
Thread Type NF/UNF/UNEF
Overall Len 5.5120 140.00MM
Drill Range 0.9134 23.20MM - 0.9350 23.75MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
