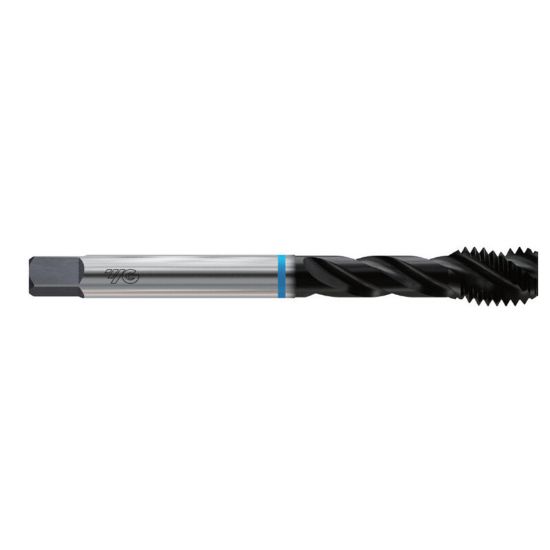

YG-1 BK766 7/8-14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BK766
Delivery date: 3-5 days
$150.01

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Mod Bottom Tapping, Tapping
Coating Hardslick
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Square 0.5230
Flute Direction R - Right
Length Type Standard
Thread Pitch 14.00TPI
Shank/Pilot Dia 0.6970 17.70MM
Thread Limit H6/GH6
Tool Material Steel
Overall Len 4.9210 124.99MM
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size 7/8"
Thread Type NF/UNF/UNEF
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
