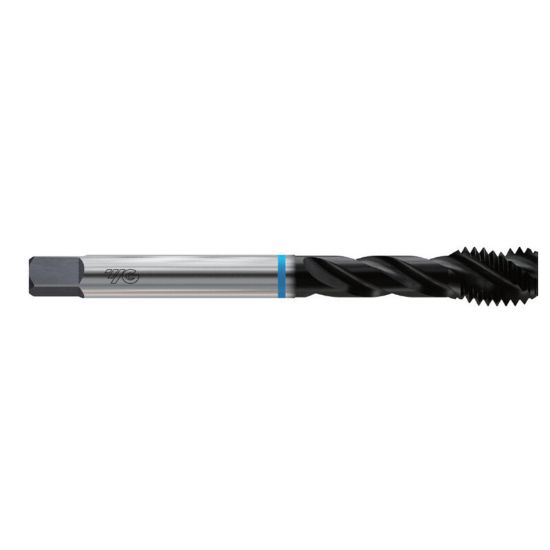

YG-1 BK665 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BK665
Delivery date: 3-5 days
$103.27

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Cut Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating Hardslick
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Limit H5/GH5
Thread Type NF/UNF/UNEF
Tool Material Steel
Tap Square 0.3600
Machine Side Connection Type Tap Collet
Drill Range 0.5669 14.40MM - 0.5815 14.77MM
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Thread Pitch 18.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Tap Chamfer 2.0P-3.0P
Thread Size 5/8"
Cutting & Machining Properties
Cutting Edge Mat Super HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
