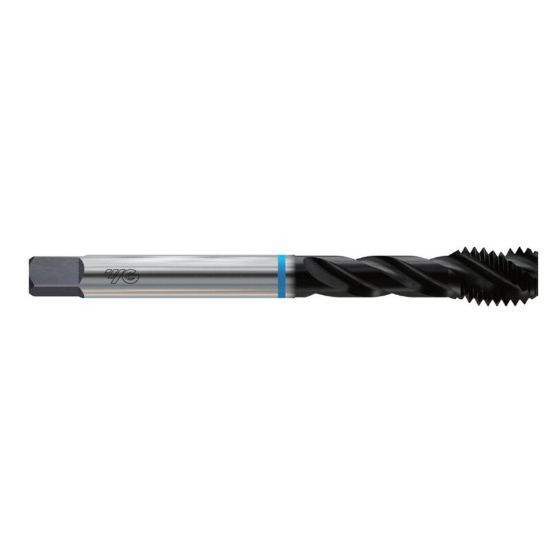

YG-1 BK645 5/8-11.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BK645
Delivery date: 3-5 days
$103.27

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Shipping State Illinois
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Hardslick
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 4
Thread Limit H5/GH5
Thread Pitch 11.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Length Type Standard
Overall Len 4.3310 110.01MM
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Thread Size 5/8"
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
Mold Yes
