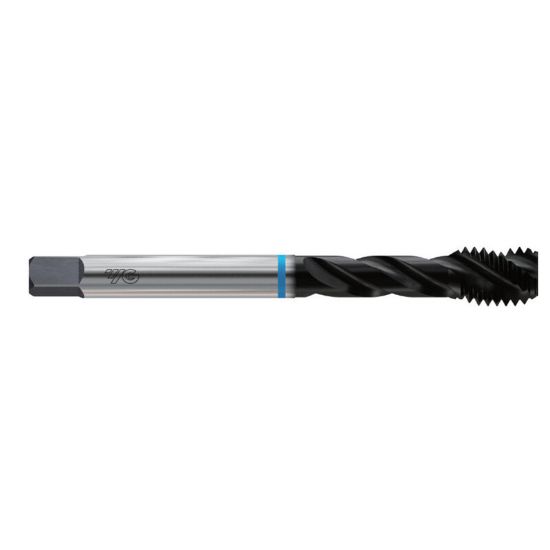

YG-1 BK565 1/2-13.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BK565
Delivery date: 3-5 days
$53.68

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Shipping State Illinois
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Hardslick
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 13.00TPI
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Length Type Standard
Thread Type NC/UNC
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Thread Size 1/2"
Tool Material Steel
Overall Len 4.3310 110.01MM
Thread Limit H5/GH5
Shank/Pilot Dia 0.3670 9.32MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
Mold Yes
