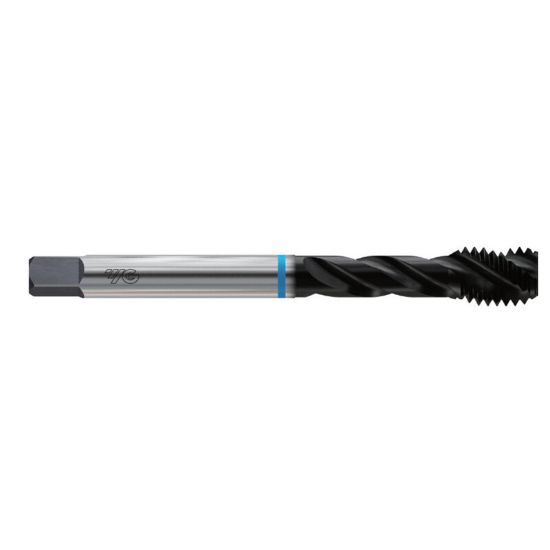

YG-1 BK504 3/8-24.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BK504
Delivery date: 3-5 days
$38.09

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Mod Bottom Tapping, Cut Tapping
Coating Hardslick
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Limit H4/GH4
Machine Side Connection Type Tap Collet
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Thread Size 3/8"
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.3810 9.68MM
Tap Chamfer 2.0P-3.0P
Flutes/Inserts 3
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Length Type Standard
Tool Material Steel
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
