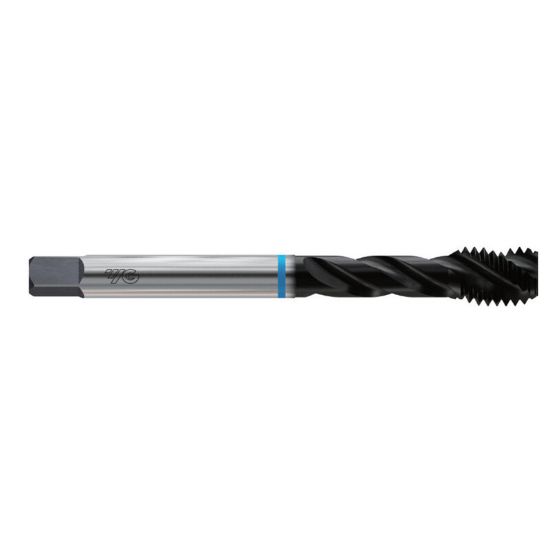

YG-1 BK405 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BK405
Delivery date: 3-5 days
$26.47

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Hardslick
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Size 1/4"
Shank/Pilot Dia 0.2550 6.48MM
Overall Len 3.1560 80.16MM
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Length Type Standard
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Limit H5/GH5
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
