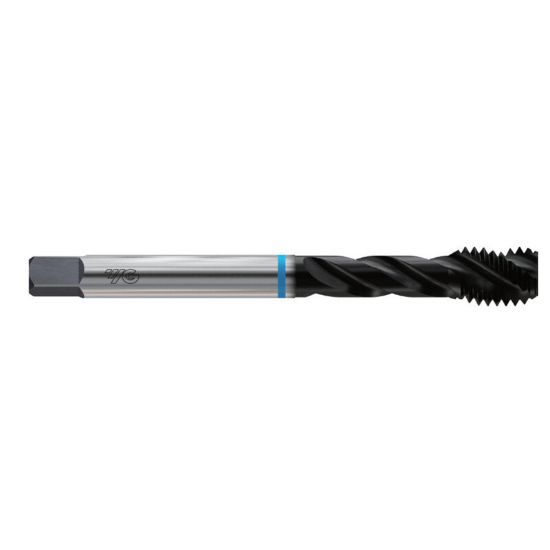

YG-1 BK343 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BK343
Delivery date: 3-5 days
$22.71

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Hardslick
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1940 4.93MM
Tap Chamfer 2.0P-3.0P
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tool Material Steel
Thread Size No.10
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Overall Len 2.7560 70.00MM
Tap Square 0.1520
Flutes/Inserts 3
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
