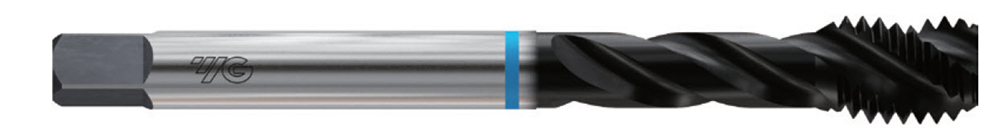

Picture of YG-1 BK082 No.2-56.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick

YG-1 BK082 No.2-56.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick

Part Number: YG-BK082
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$68.17
SKU: 1160901

Description

YG-1 BK082 No.2x56.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Hardslick H3/GH3 NC/UNC Steel Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 1.7720 45.01MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Thread Pitch 56.00TPI
Thread Size No.2
Tap Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat Super HSS
Coating Hardslick
Standards & Identification
Dimension Standard DINSI
