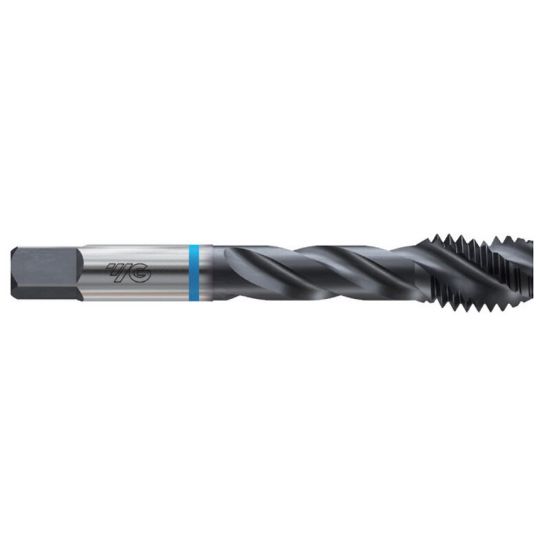

YG-1 BH375 M8-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BH375
Delivery date: 3-5 days
$17.33

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Package Size 1
Coating Steam Oxide
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Size M8
Tap Square 0.2380
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Flutes/Inserts 3
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Drill Range 0.2740 6.96MM - 0.2843 7.22MM
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Overall Len 2.7200 69.09MM
Length Type Standard
Thread Type Metric
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
Mold Yes
