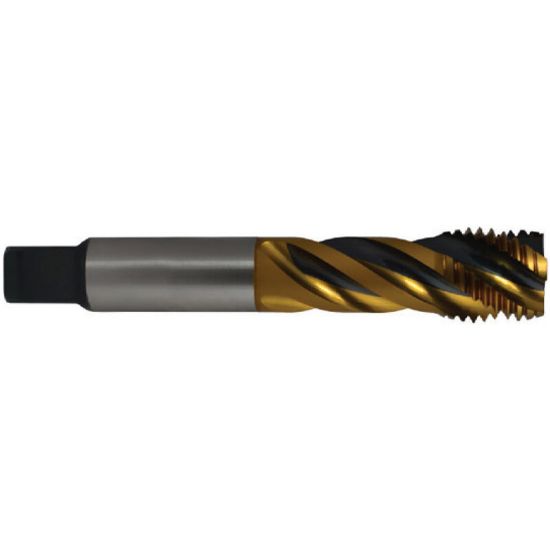

YG-1 BG952GB 1-1/2-8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Gold-Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BG952GB
Delivery date: 3-5 days
$350.96

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Illinois
Coating Gold-Black
Made In USA No
Package Size 1
Dimensional Specifications
Thread Limit 2B
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Shank/Pilot Dia 1.2330 31.32MM
Drill Range 1.3484 34.25MM - 1.4024 35.62MM
Length Type Standard
Thread Pitch 8.00TPI
Cut Rating <48HRC Steel, Stainless Steel
Overall Len 6.3750 161.93MM
Flutes/Inserts 5
Tap Square 0.9250
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size 1-1/2"
Cutting & Machining Properties
Cutting Edge Mat HSS-EX
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
