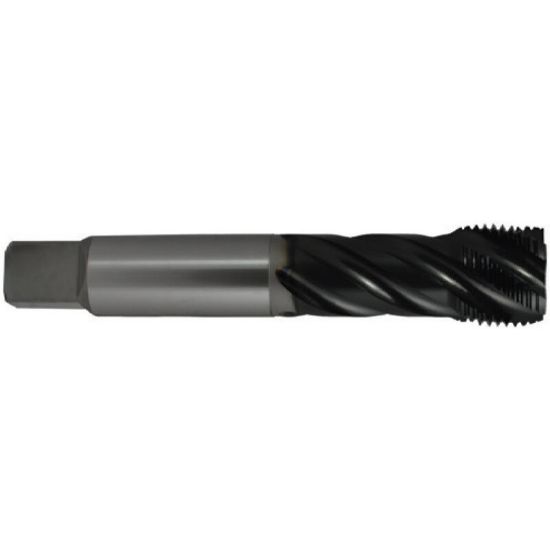

YG-1 BG912H 1-3/8-8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BG912H
Delivery date: 3-5 days
$272.65

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Hardslick
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size 1-3/8"
Thread Pitch 8.00TPI
Cut Rating <48HRC Steel, Stainless Steel
Flutes/Inserts 5
Drill Range 1.2449 31.62MM - 1.2776 32.45MM
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Tap Square 0.8310
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tool Material Steel
Thread Limit 2B
Shank/Pilot Dia 1.1080 28.14MM
Overall Len 6.0620 153.97MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-EX
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
