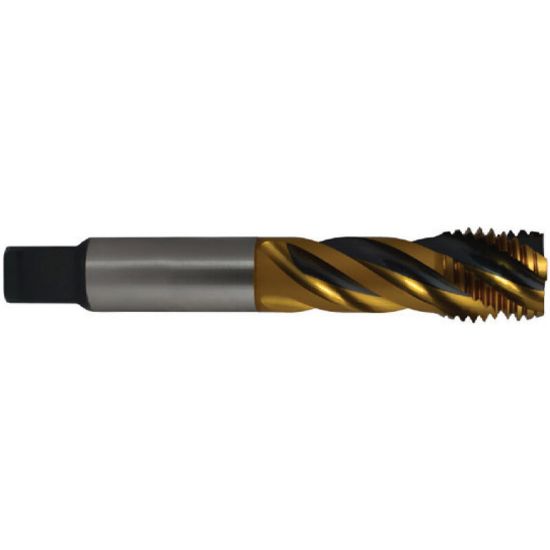

YG-1 BG912GB 1-3/8-8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Gold-Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BG912GB
Delivery date: 3-5 days
$272.65

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Coating Gold-Black
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Type NC/UNC
Dimension Standard DINSI
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Flutes/Inserts 5
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 2B
Shank/Pilot Dia 1.1080 28.14MM
Overall Len 6.0620 153.97MM
Thread Size 1-3/8"
Thread Pitch 8.00TPI
Cut Rating <48HRC Steel, Stainless Steel
Drill Range 1.2449 31.62MM - 1.2776 32.45MM
Flute Direction R - Right
Tap Square 0.8310
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-EX
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
