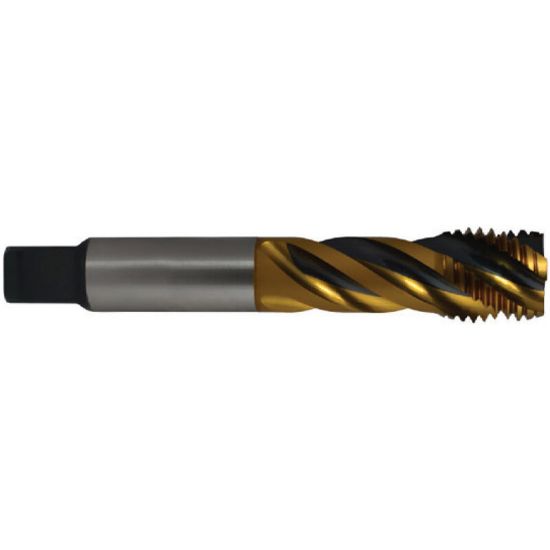

YG-1 BG822GB 1-1/8-7.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Gold-Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BG822GB
Delivery date: 3-5 days
$216.73

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Coating Gold-Black
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 0.8960 22.76MM
Tap Chamfer 2.0P-3.0P
Overall Len 5.4370 138.10MM
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Flutes/Inserts 4
Length Type Standard
Thread Size 1-1/8"
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Pitch 7.00TPI
Thread Limit 2B
Drill Range 0.9764 24.80MM - 1.0134 25.74MM
Tap Square 0.6720
Cut Rating <48HRC Steel, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-EX
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
