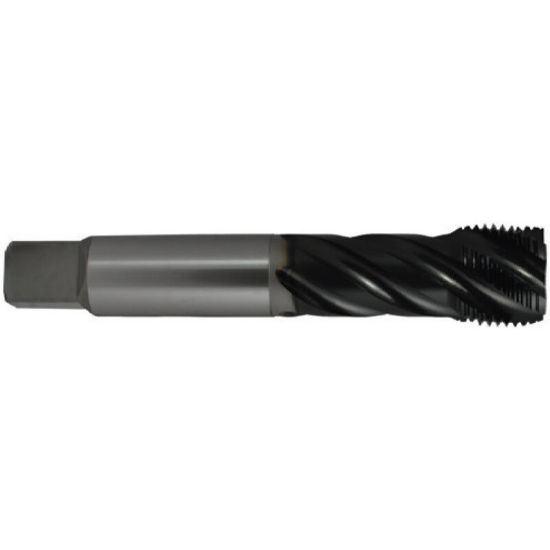

YG-1 BG782H 1-8.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BG782H
Delivery date: 3-5 days
$141.96

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Mod Bottom Tapping, Cut Tapping
Coating Hardslick
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Drill Range 0.8701 22.10MM - 0.9024 22.92MM
Machine Side Connection Type Tap Collet
Overall Len 6.2990 159.99MM
Tool Material Steel
Tap Square 0.6000
Thread Limit 2B
Shank/Pilot Dia 0.8000 20.32MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flute Direction R - Right
Length Type Standard
Thread Size 1"
Thread Type NC/UNC
Dimension Standard DINSI
Flutes/Inserts 4
Tap Chamfer 2.0P-3.0P
Thread Pitch 8.00TPI
Cut Rating <48HRC Steel, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSS-EX
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
