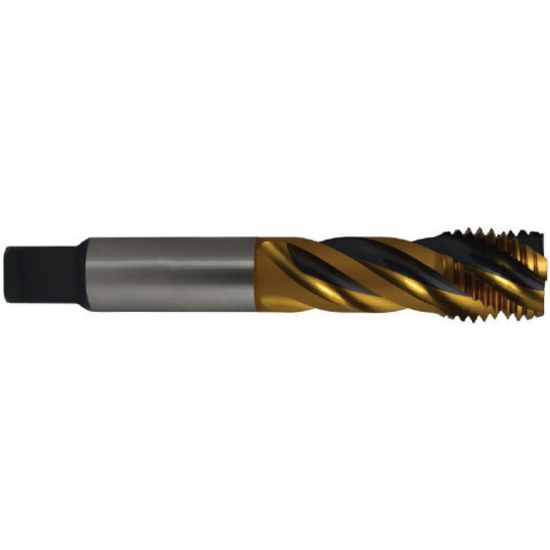

YG-1 BG742GB 7/8-9.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Gold-Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BG742GB
Delivery date: 3-5 days
$123.13

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Illinois
Package Size 1
Coating Gold-Black
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 9.00TPI
Cut Rating <48HRC Steel, Stainless Steel
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Flutes/Inserts 4
Drill Range 0.7594 19.29MM - 0.7882 20.02MM
Length Type Standard
Thread Size 7/8"
Thread Limit 2B
Tool Material Steel
Overall Len 5.5120 140.00MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Shank/Pilot Dia 0.6970 17.70MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Square 0.5230
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS-EX
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
