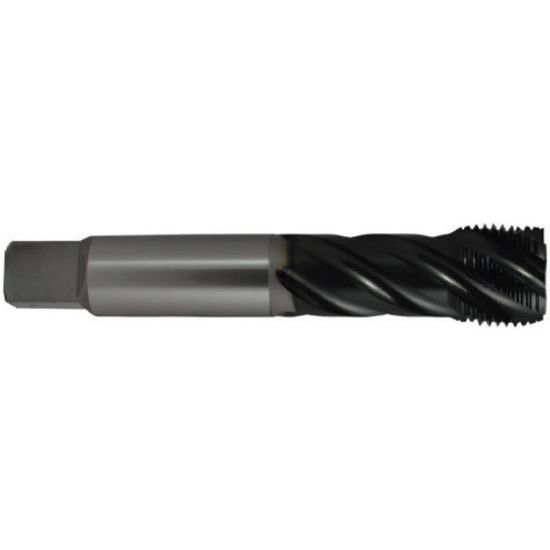

YG-1 BG702H 3/4-10.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BG702H
Delivery date: 3-5 days
$98.64

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Package Size 1
Made In USA No
Shipping State Illinois
Coating Hardslick
Performance Rating High Performance
Dimensional Specifications
Thread Limit 2B
Machine Side Connection Type Tap Collet
Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size 3/4"
Cut Rating <48HRC Steel, Stainless Steel
Flutes/Inserts 3
Tap Square 0.4420
Thread Type NC/UNC
Dimension Standard DINSI
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Overall Len 4.9210 124.99MM
Flute Direction R - Right
Length Type Standard
Thread Pitch 10.00TPI
Shank/Pilot Dia 0.5900 14.99MM
Cutting & Machining Properties
Cutting Edge Mat HSS-EX
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
