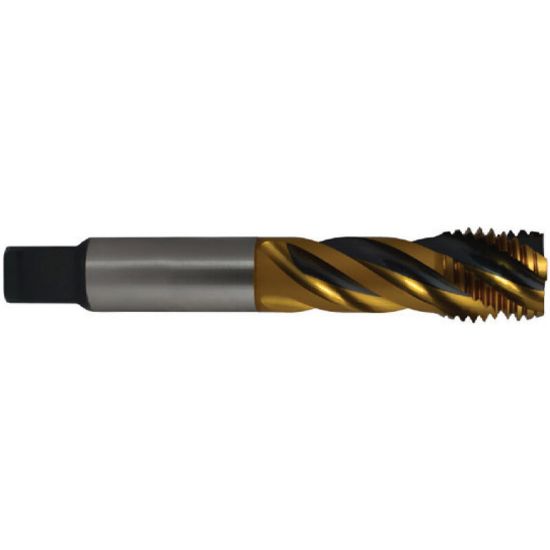

YG-1 BG702GB 3/4-10.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Gold-Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BG702GB
Delivery date: 3-5 days
$98.64

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Mod Bottom Tapping, Tapping, Cut Tapping
Coating Gold-Black
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flute Direction R - Right
Length Type Standard
Thread Limit 2B
Tool Material Steel
Overall Len 4.9210 124.99MM
Thread Pitch 10.00TPI
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Thread Size 3/4"
Cut Rating <48HRC Steel, Stainless Steel
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 3
Thread Type NC/UNC
Dimension Standard DINSI
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSS-EX
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Job Shop Yes
