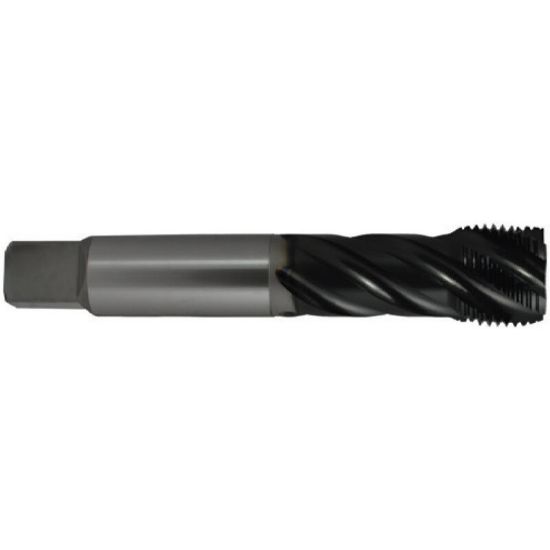

YG-1 BG642H 5/8-11.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BG642H
Delivery date: 3-5 days
$65.36

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Hardslick
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Flutes/Inserts 3
Thread Pitch 11.00TPI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Cut Rating <48HRC Steel, Stainless Steel
Overall Len 4.3310 110.01MM
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Thread Size 5/8"
Thread Limit 2B
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSS-EX
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
