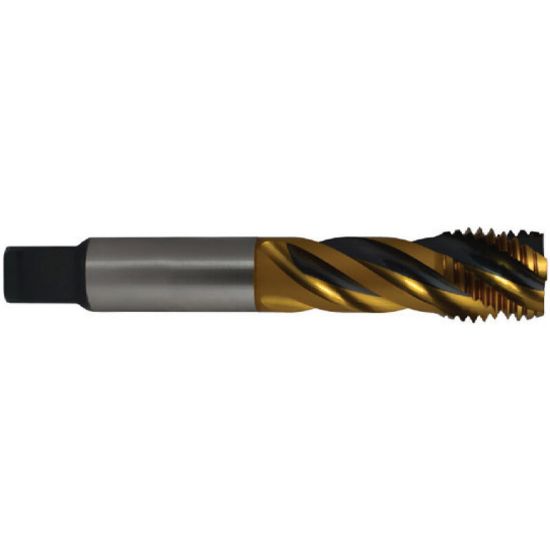

YG-1 BG642GB 5/8-11.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Gold-Black

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BG642GB
Delivery date: 3-5 days
$65.36

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Coating Gold-Black
Package Size 1
Dimensional Specifications
Tool Material Steel
Thread Size 5/8"
Cut Rating <48HRC Steel, Stainless Steel
Overall Len 4.3310 110.01MM
Flutes/Inserts 3
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Thread Type NC/UNC
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Thread Pitch 11.00TPI
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Shank/Pilot Dia 0.4800 12.19MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Limit 2B
Cutting & Machining Properties
Cutting Edge Mat HSS-EX
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Energy Yes
Agricultural YES
