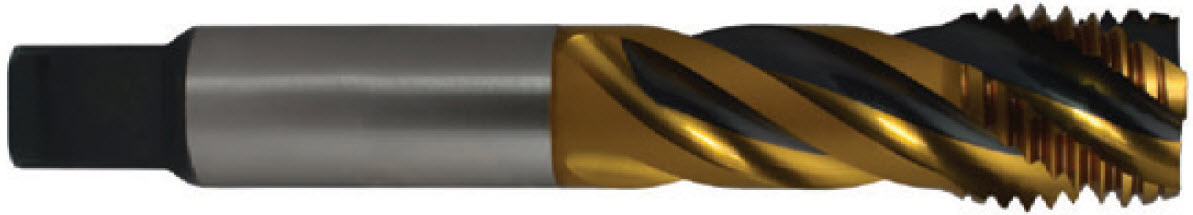

Picture of YG-1 BG642GB 5/8-11.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Gold-Black

YG-1 BG642GB 5/8-11.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Gold-Black

Part Number: YG-BG642GB
Looking for alternatives…
Find a drill for this tap 5/8" × 11.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1160791
Vendor: Sussex Tool and Supply
$90.89

Description

YG-1 BG642GB 5/8"x11.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSS-EX Gold-Black 2B NC/UNC Steel The rich amber gold color sets it apart from commodity cutting tools . •Runs cooler, uses less torque.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 4.3310 110.01MM
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 3
Thread Pitch 11.00TPI
Thread Size 5/8"
Tap Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Performance & Capacity
Cut Rating <48HRC Steel, Stainless Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-EX
Coating Gold/Black
Standards & Identification
Dimension Standard DINSI
