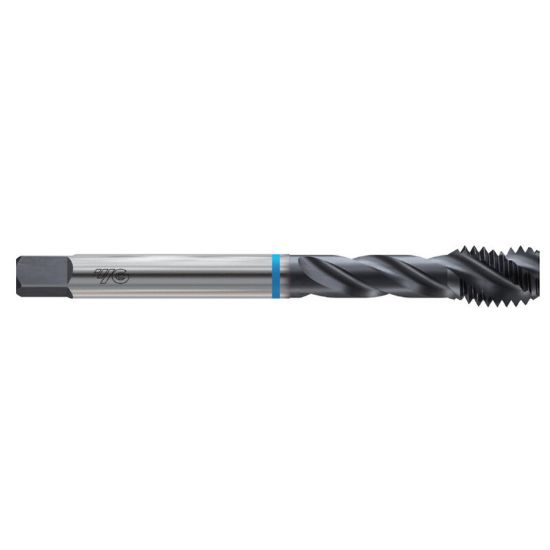

YG-1 BF082 No.2-56.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BF082
Delivery date: 3-5 days
$40.40

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating High Performance
Coating Steam Oxide
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard DINSI
Cut Rating <40HRC Steel, Stainless Steel
Flutes/Inserts 2
Tap Chamfer 2.0P-3.0P
Thread Pitch 56.00TPI
Overall Len 1.7720 45.01MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Thread Size No.2
Flute Direction R - Right
Tap Square 0.1100
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
