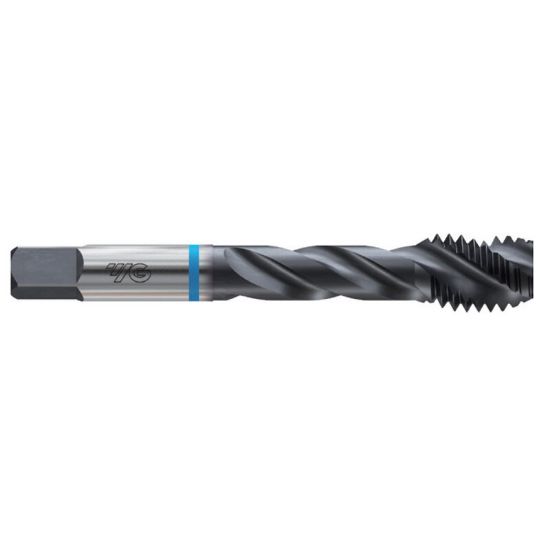

YG-1 BB282 No.8-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BB282
Delivery date: 3-5 days
$13.15

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Made In USA No
Coating Steam Oxide
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Dimensional Specifications
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Thread Size No.8
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1680 4.27MM
Tap Square 0.1310
Length Type Standard
Overall Len 2.1250 53.98MM
Flutes/Inserts 3
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Agricultural YES
Job Shop Yes
Mold Yes
Energy Yes
