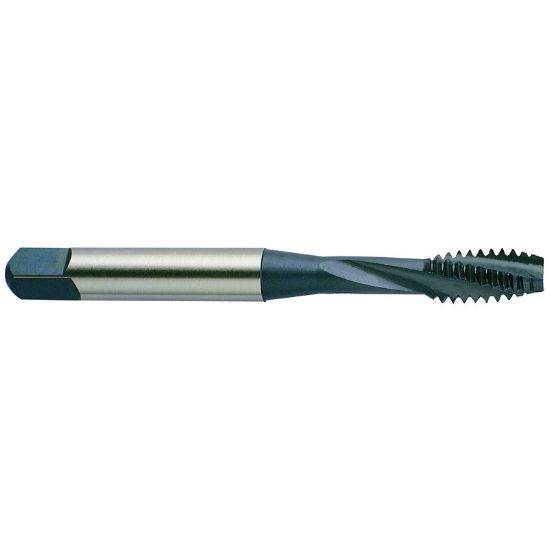

YG-1 B4543 7/16-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-B4543
Delivery date: 3-5 days
$23.36

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Tool Material Steel
Thread Size 7/16"
Flutes/Inserts 3
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Pitch 20.00TPI
Tap Chamfer 2.0P-3.0P
Cut Rating High Temp, Inconel, Titanium
Overall Len 3.1560 80.16MM
Cutting & Machining Properties
Cutting Edge Mat P-HSS
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
