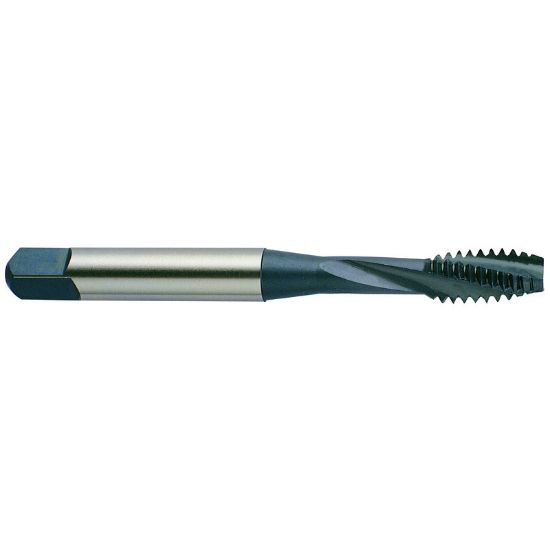

YG-1 B4523 7/16-14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-B4523
Delivery date: 3-5 days
$23.36

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Flutes/Inserts 3
Tap Square 0.2420
Thread Size 7/16"
Thread Pitch 14.00TPI
Overall Len 3.1560 80.16MM
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Dimension Standard ANSI/ANSI
Cut Rating High Temp, Inconel, Titanium
Tool Material Steel
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat P-HSS
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
