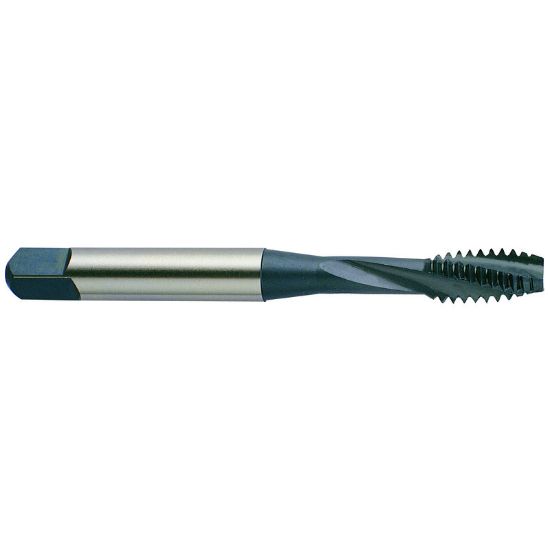

YG-1 B4424 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-B4424
Delivery date: 3-5 days
$14.79

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 28.00TPI
Tool Material Steel
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cut Rating High Temp, Inconel, Titanium
Thread Size 1/4"
Thread Limit H4/GH4
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Type Mod Bottom
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat P-HSS
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
