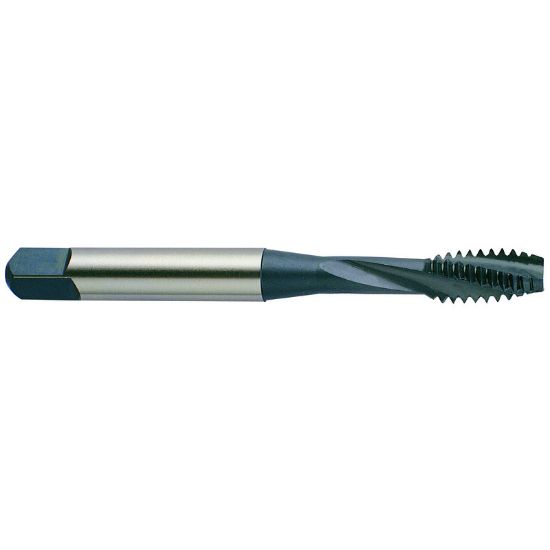

YG-1 B4423 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-B4423
Delivery date: 3-5 days
$14.79

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Size 1/4"
Cut Rating High Temp, Inconel, Titanium
Thread Pitch 28.00TPI
Flutes/Inserts 3
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Type Mod Bottom
Tool Material Steel
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Shank/Pilot Dia 0.2550 6.48MM
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat P-HSS
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Medical Yes
Job Shop Yes
