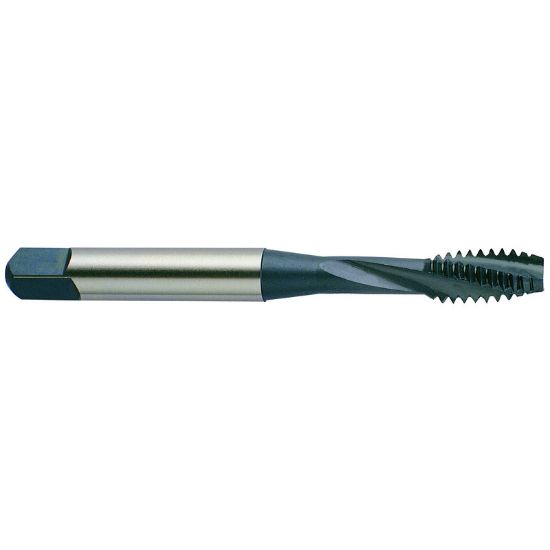

YG-1 B4202 No.5-40.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-B4202
Delivery date: 3-5 days
$14.97

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Cut Tapping, Mod Bottom Tapping
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Cut Rating High Temp, Inconel, Titanium
Machine Side Connection Type Tap Collet
Tool Material Steel
Drill Range 0.0988 2.51MM - 0.1047 2.66MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flute Direction R - Right
Tap Square 0.1100
Length Type Standard
Flutes/Inserts 3
Thread Size No.5
Thread Type NC/UNC
Thread Limit H3/GH3
Tap Chamfer 2.0P-3.0P
Thread Pitch 40.00TPI
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.9370 49.20MM
Cutting & Machining Properties
Cutting Edge Mat P-HSS
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
