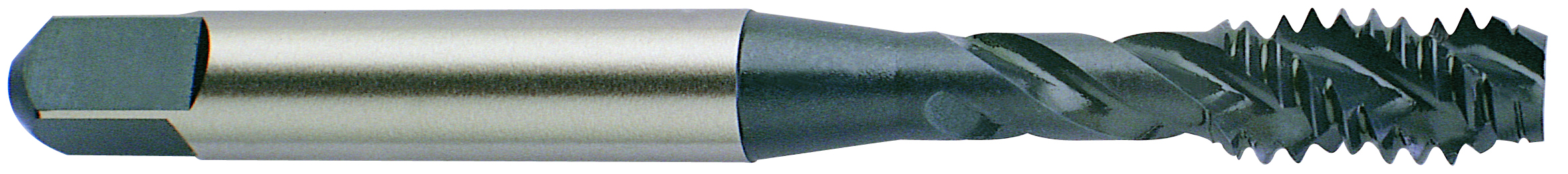

Picture of YG-1 B1343 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

YG-1 B1343 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

Part Number: YG-B1343

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1160485
Vendor: Sussex Tool and Supply
$11.41
YG-1 B1343 No.10x32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V3
Machine Side Connection Type Tap Collet
Cut Rating <30HRC Steel, Stainless Steel
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size No.10
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Tap Chamfer 2.0P-3.0P
