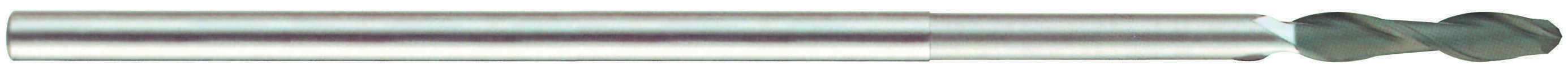

Picture of YG-1 99678 Dia 5/64 SH 0.1250 LOC 0.3750 OAL4.00 End Mill Standard Flute Standard Helix Carbide Diamond Single End Ball NoseBall D-Power

YG-1 99678 Dia 5/64 SH 0.1250 LOC 0.3750 OAL4.00 End Mill Standard Flute Standard Helix Carbide Diamond Single End Ball NoseBall D-Power

Part Number: YG-99678

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: 1206448
Vendor: Sussex Tool and Supply
$64.54
YG-1 Standard Helix End Mill Carbide Diamond Ball Nose Ball Standard Flute Flutes 2 Single End D-Power Carbide By applying diamond coatings to your metal parts you can increase lifetime and minimize maintenance related downtime due to the replacement of high wear parts. In addition, any process parts enhanced by a wear resistant coating like Composite Diamond Coating® will produce more consistent product over an extended period of time. Most metal finishers agree that the presence of this unique coating may also allow new materials with other performance or cost advantages to be utilized.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite
Coating Diamond
Mach Side Connection Size 0.1250 3.18MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 2
Tool Dia 0.0781 1.98MM - 5/64
Length Type Long / With Neck
Performance Rating High Performance
Length Of Cut 0.3750 9.53MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
Neck Length 0.7500 19.05MM
